Crop protection

There are many organisms that can harm plants and slow down their development. To protect the crop timely preventive steps need to be taken to minimise risk. Herbicides, pesticides, fungicides; they are all used to protect crop and control growth and then there are the biological control methods for crop protection like our Entomatic beneficial insect dispenser that evenly distributes mites, pupae, eggs, larvae and insects and makes sure that all the beneficiary mites and such like actually land on the plants (where they are needed) and not on the floor.

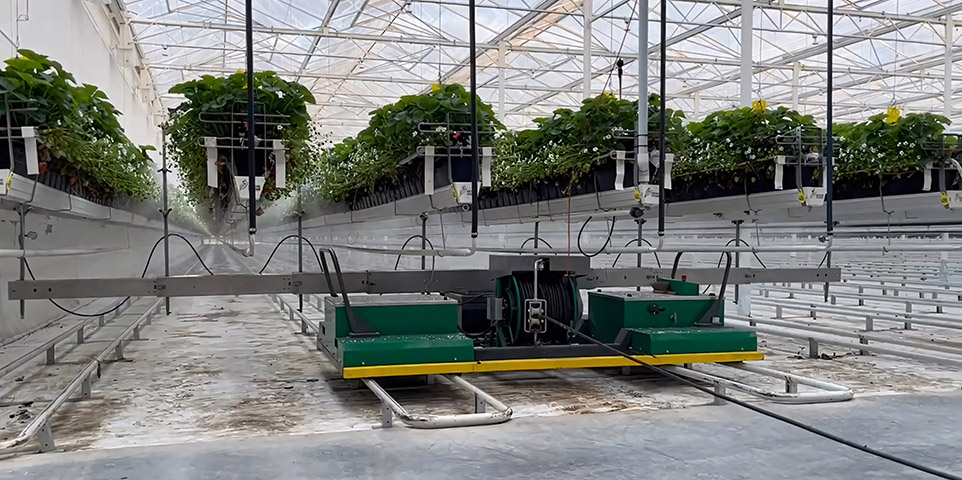

Sprayer – tandem carrier

To ensure healthy crops, spraying is inevitable. The right sprayer is crucial in how well the plants will grow. Our crop protection sprayer will reach even the hardest to reach areas and cover every plant separately and evenly. Its multiple carrier frame fits any purpose. The sprayer itself can be positioned perfectly throughout the greenhouse up to a height of up to 9, 5 metres. In addition, the sprayer can be adjusted to meet all your requirements and specific growing system. The software we use is from Berkvens. At your request the sprayer can be equipped with a spraying pump of Ermas, global specialist in horticulture spraying gear. For an optimum mix of spraying liquids use the dosing unit that is optional to the sprayer.

The sprayer is designed to disperse efficiently so there is minimum waste of the product, and all the product effectively ends up on the plants.

Tandem Carrier

Key features tandem carrier sprayer

Multi purpose use with the multi carrier frame
Placed underneath the gutter
Hose reel up to 200 metre
Perfect positioning with its multiple position index
Booms up to 9.6 metre
Standard with Bronze spraying nozzles – 3 on each side
Control software from Berkvens
Tailor fitted to your growing system

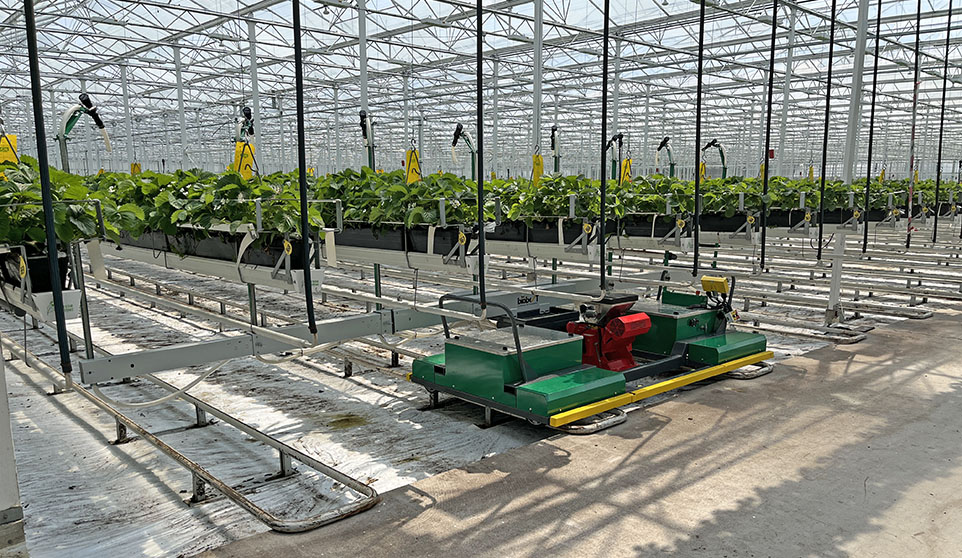

Entomatic beneficial insect dispenser – tandem carrier

Entomatic beneficial dispenser

Key features tandem carrier Entomatic beneficial insect dispenser

Even distribution for an efficient and cost effective work process
Up to 16 dispensing points
Multi carrier frame enables multiple use
Perfect positioning with the multiple position index
Booms up to 9,6 metre
Leading automating expert Berkvens control software
Tailor fitted to your specific growing system

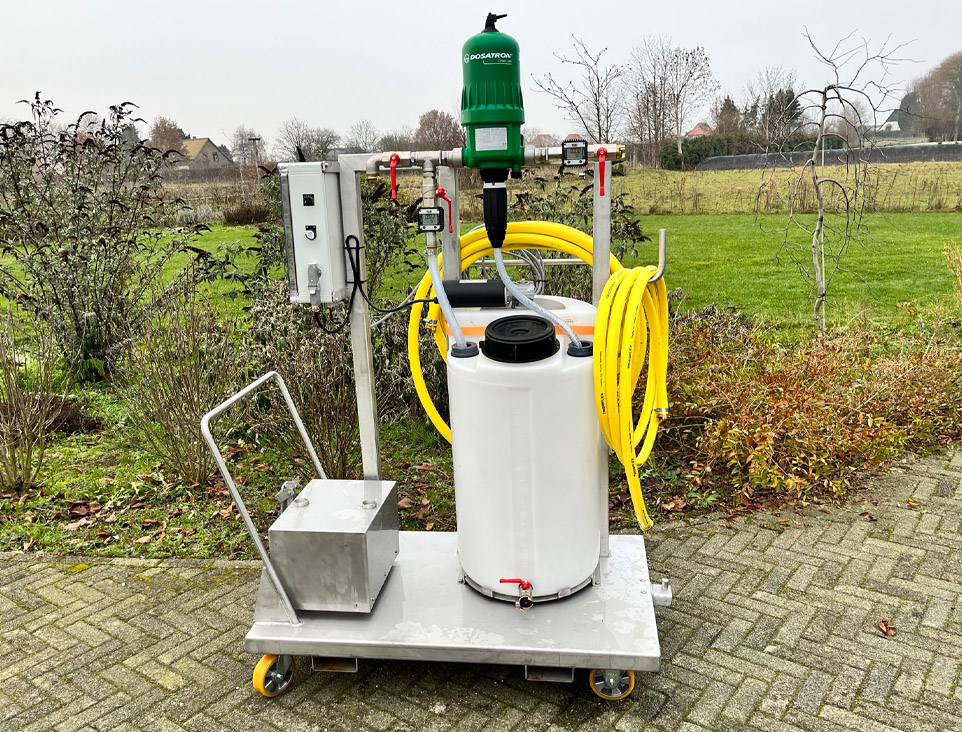

Mobile dosing system

With its compact design and high quality components the mobile dosing unit offers the convenience of accurate dosing and flexibility through its mobility. The storage unit is mounted on a light yet sturdy trolly that can be easily moved. The dosing system automatically mixes the spraying produce with water and is ideal for quickly filling the sprayers. The user does not come in contact with the product which enhances a safe work environment.

Dosing System

Key features mobile dosing unit

Inline mixing system for spraying chemicals
Water driven dosing pump
3% repeatability
60, 100 or 200 litres mixing tank with speed adjustable mixer
Up to 9.000 litres per hour

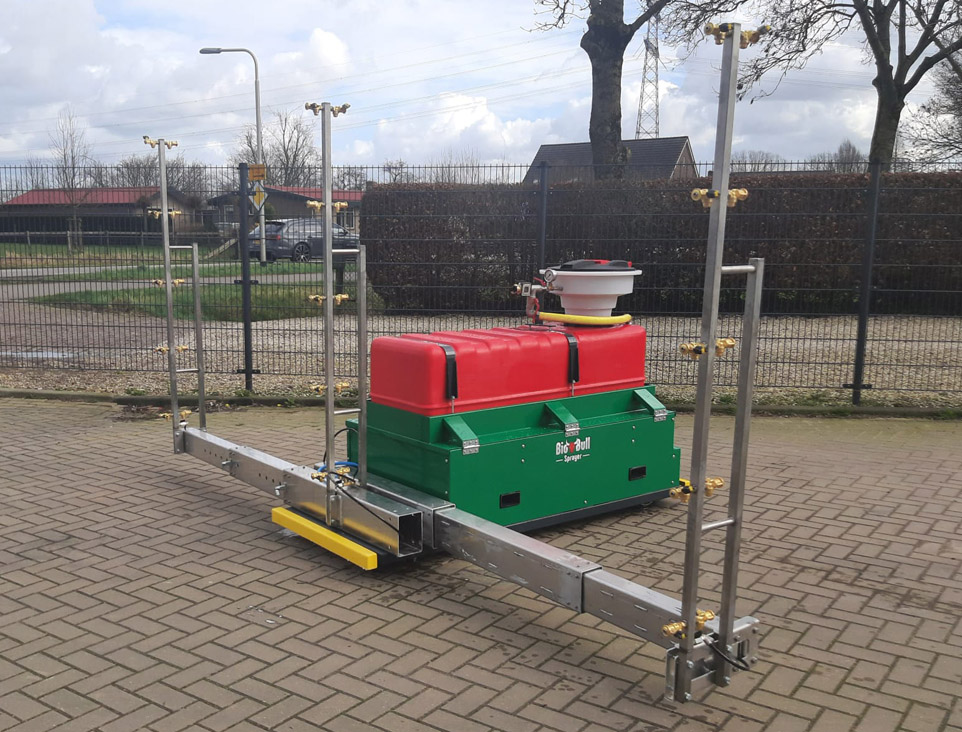

Solo Carrier

This solo carrier can be used on single tube rail systems from 500 to 1.100 mm with a hose reel up to 180 metres. With an up to 5 metre height and up to 6 sticks it is both capacious and flexible in use. The carrier can be extended with a biology spreader and/or 300 litre sprayer with a pump system.

Single Carrier

Key features solo carrier

Multi carrier frame for multiple purpose
Below the gutter
Using single Tube rail system 500 – 1.100 mm
Hose reel up to 180 metre
Boom up to 5 metre with maximum 6 sticks
Up to 9 different programs
